Welcome to our LMR-400, LMR-195 cable and wireless lan cable page.We offer cable and cable assemblies using the Times Microwave LMR400 cable, LMR195 cable. We offer cable for use where low loss 2.4 cable is required. This is just a sample of what we offer in the area of cable for Wireless lan and Wireless Internet applications.



 Wlan / ISM / 2.4 GHz Low Loss Cable

Flexible Communication Cable
Ideal for...
  • Jumper Assemblies in Wireless Communications Systems
  • Short Antenna Feeder runs
  • Any application (e.g. WLL, GPS, LMR) requiring an easily routed, low loss RF cable
  • Standard size rolls of 500 to 1000 feet
  • We also offer and cut lengths from 100 to 300 feet
    (Non spooled)
    •

    For cable runs 25 feet and under use the LMR®-195 cable
    For cable runs greater than 25 feet use the LMR®-400 cable

    Part Number

     Characteristics

    LMR®-195

    LMR195 Cable for wireless Lan applications

    LMR®-400

    LMR-400 Cable for wireless Lan applications

     Price Per Foot

    Delivery Status

    		See our new website
    		 See our new website
    Center Conductor Solid Bare Copper Solid Bare Copper Clad Aluminum
    Center Conductor Diameter "( inches ) .037 .108
    Dielectric Diameter " ( inches ) .110 .285
    Diameter Over Foil " ( inches ) .116 .291
    Diameter Over Braid" ( inches ) .139 .320
    Overall Diameter " ( inches ) .195 .405
    Weight per Foot ( lbs ) 0.022 0.068
    Min. Bend Radius " ( inches ) .50 1.0
    Capacitance pF/foot 24.3 23.9
    Velocity of Propagation (%) 80 85
    Nominal Attenuation (dB/100 ft) @ 30 MHz 2.0 0.7
    Nominal Attenuation (dB/100 ft) @ 50 MHz 2.6 0.9
    Nominal Attenuation (dB/100 ft) @ 150 MHz 4.4 1.5
    Nominal Attenuation (dB/100 ft) @ 220 MHz 5.4 1.9
    Nominal Attenuation (dB/100 ft) @ 450 MHz 7.8 2.7
    Nominal Attenuation (dB/100 ft) @ 900 MHz 11.1 3.9
    Nominal Attenuation (dB/100 ft) @ 1500 MHz 14.5 5.1
    Nominal Attenuation (dB/100 ft) @ 1800 MHz 16.0 5.7
    Nominal Attenuation (dB/100 ft) @ 2000 MHz 16.9 6.0
    Nominal Attenuation (dB/100 ft) @ 2500 MHz 19.0 6.8

    Need connectors



    Click on photo to enlarge

     Type N Male Crimp Plug LMR-400

    Buy

    HD19997

    $ 7.50

    High Quality

    In Stock





    Click on photo to enlarge

    Type N Female Crimp Plug LMR-400

    Buy

    HD19998

    $ 7.50

    Standard and Reverse Polarity Connectors


     Click on photo to enlarge

     Reverse Polarity TNC Male Crimp Plug LMR-400

    Buy

    HD19999

    $ 7.50

    We also offer cable assembly tools





    Click on photo to enlarge

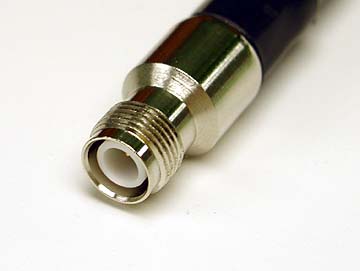

     Reverse Polarity TNC Female Crimp Plug LMR-400

    Buy

    HD20000

    $ 7.50

      Crimp Handle

    Buy

    RFA-4005-20

    $74.99


     Click on photo to enlarge

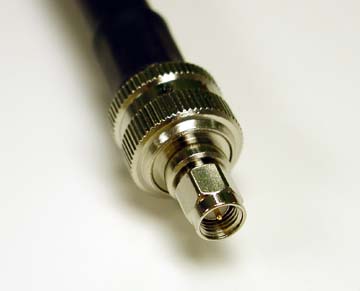

     SMA Male Crimp Plug LMR-400

    Buy

    HD20001

    $ 7.50

      Crimp Dies for above handle

    Buy

    For LMR-400 Cable

    RFA-4005-02 $24.99





      Reverse Polarity SMA Male Crimp Plug LMR-400

    Buy

    HD20619

    $ 7.50

    Buy

    For LMR-195 Cable

    RFA-4005-01 $24.99




     Click on photo to enlarge

     Reverse Polarity TNC Male Crimp Plug LMR-195

    Order

    Buy

    HD20002

    $ 7.50

     Still don't see the connector you are looking for ? Call tech support at

    (888) 588-3800

    Ext 21





    Click on photo to enlarge

     Type N Male Crimp Plug LMR-195

    Buy

    HD20003

    $ 7.50

  • HIGH QUALITY MANUFACTURING - IN STOCK AND DIRECT TO YOU
  • LOW MINIMUM ON SMALL QUANTITY ORDERS
    •

  • All ORDERS FOR IN STOCK ITEMS RECEIVED BY 3PM EST ARE SHIPPED THE SAME DAY.
  • INTERNATIONAL ORDERS SHIPPED WITHIN 24 HOURS.
    •
