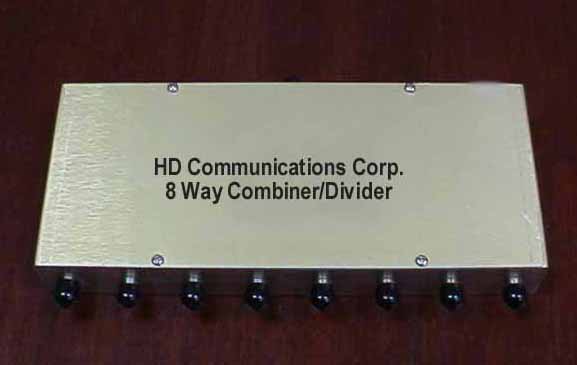

Welcome to our RF Microwave 8 Way Divider Combiner selection guide
if you do not see what you are looking for please send us an email
request

8 Way Rx Power

Dividers & Power Combiners

400 MHz to 2.5 GHz

30 Watts CW Input Max

SMA , Type N, Or TNC




 HD

Part #

 Frequency

Range

(MHz)

 Insertion Loss

(dB Max.)

 Isolation

(dB Min.)

VSWR

IN

(Max.)

 VSWR

OUT

(Max.)

 Amplitude

Balance

(Deg.Max.)

 Phase

Balance

(Deg. Max.)

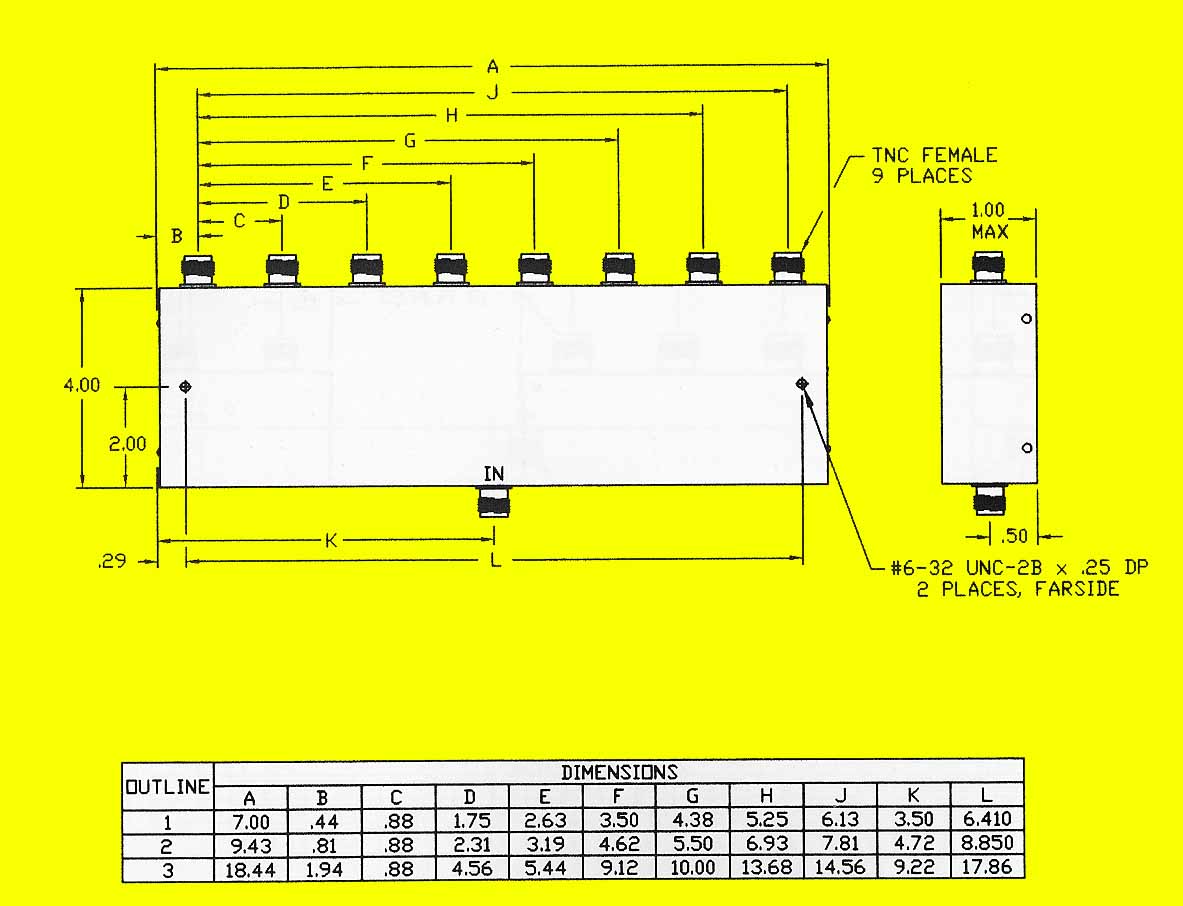

 Outline
 HD14726

 400-470

 .80

 20

1:30:1

 1:30:1

 .60

 3

 3
 HD14508

 800-980

 .80

 20

 1:30:1

 1:30:1

  .60

 3

 2
 HD14727  1400-1600

 1.00

 20

 1:40:1

 1:40:1

  .60

 3

 1
 HD14510  1710-2200

 1.00

 20

 1:40:1

 1:40:1

  .60

 3

 1
 HD14511  2200-2500

 1.00

 20

 1:40:1

 1:40:1

  .60

 3

 1

The standard configuration is SMA. Type N and TNC Combiners/Dividers are supplied with SMA to Type N or TNC Adapters and will have a slightly higher insertion loss (approx. + .1 dB)

We also offer 2,3,4,6,10,12,16 Ways as well. please email us request
