Welcome to our BNC 75 ohm RF Connectors,BNC Connectors, RF Microwave connectors,microwave connectors and RF coaxial connector selection guide if you do not see what you are looking for please send us an email request



BNC - 75 Ohm Connectors



Dielectric Key

A - ABS (VALOX)

D - DELRIN

T - TEFLON

Plating Key

N - NICKEL

S - SILVER

G - GOLD



Click here to see BNC - 75 Ohm Connectors Cable Groups
Min Order 10 Pieces

 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

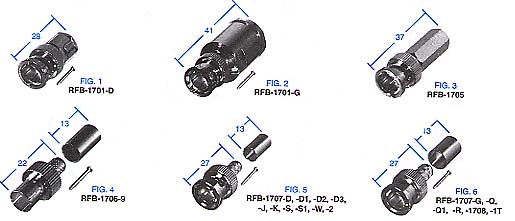

RFB-1701-D 1 Male Clamp Plug D for RG-59/U Huber Suhner 11 BNC-75-4-2 N G T $2.22

$2.12

$2.02
RFB-1701-G 2 Male Clamp Plug G for Belden 8281 N/A N S T $2.13

 $2.03

 $1.93
RFB-1705 3 Male Crimp Plug D for RG-59/U N/A N S D $2.50

 $2.40

$2.30
RFB-1706-9 4 Male Crimp Plug D Quick Disconnect for RG-59/U N/A N G D $2.35

$2.25

 $2.15
RFB-1707-D 5 Male Crimp Plug D for RG-59/U UG-1789/U, Kings 20-25-59-9 N G T $1.91

$1.81

$1.71
RFB-1707-D1 5 Male Crimp Plug D1 for Belden 8212 Kings 2025-51-9 N G T $1.91

$1.81

$1.71
RFB-1707-D2 5 Male Crimp Plug D2 for Belden 8279 Kings 2025-38-9 N G T $1.91

$1.81

$1.71
RFB-1707-D3 5 Male Crimp Plug D3 for RG-59/U Type Kings 2025-53-9 N G T $1.91

$1.81

$1.71
 RFB-1707-G 6 Male Crimp Plug G for Belden 8281 Kings 2025-55-9 N G T $1.91

$1.81

$1.71
RFB-1707-J 5 Male Crimp Plug J for Belden 8218 Kings 2025-47-9 N G T $1.91

$1.81

$1.71
RFB-1707-K 5 Male Crimp Plug K for CommScope 735 Kings 2025-44-9 N G T $1.91

$1.81

$1.71
RFB-1707-Q 6 Male Crimp Plug Q for RG-6/U Kings 2025-79-9 N G T $1.91

$1.81

$1.71
RFB-1707-Q1 6 Male Crimp Plug Q1 for RG-6/ Type Kings 2025-89-9 N G T $1.91

$1.81

$1.71
 RFB-1707-R 6 Male Crimp Plug R for RG-11/U Huber Suhner 11 BNC-75-7-5 N G T $1.91

$1.81

$1.71
RFB-1707-S 5 Male Crimp Plug S for RG-179/U Kings 2025-57-9 N G T $1.91

$1.81

$1.71

Min Order 10 Piecesc
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249
RFB-1707-S1  5 Male Crimp Plug S1 for RG-179/U Double Shield N/A N G T $2.58 $2.48 $2.38
RFB-1707-W 5 Male Crimp Plug W for CommScope 734A Kings 2025-76-9 N G T $4.84 $4.74 $4.64
RFB-1707-2 5 Male Crimp Plug D for RG-59/U UG-1789/U N G D $1.97 $1.87  $1.77
RFB-1708 6 Male Crimp Plug G for Belden 8281 Kings 2025-58-9 N G D $1.87 $1.77  $1.67
RFB-1708-1T 6 Male Crimp Plug G for Belden 8281 Kings 2025-58-9 S G T $2.19 $2.09 $1.99

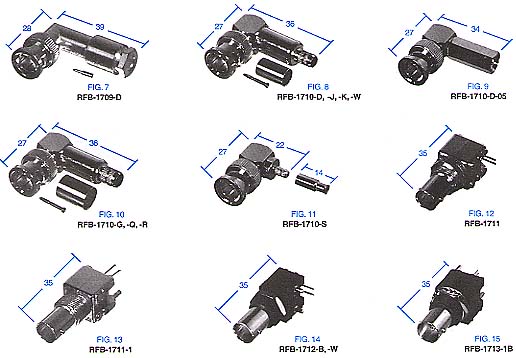

RFB-1710-D 8 Male Crimp Plug D for RG-59/U Amphenol 31-71010 N G T $6.17 $6.07 $5.97
RFB-1710-G 10 Male Right Angle Crimp Plug G for Belden 8281 N/A N G T $6.17 $6.07 $5.97
RFB-1710-J 8 Male Right Angle Crimp Plug J for Belden 8218 N/A N G T $6.17 $6.07 $5.97
RFB-1710-K 8 Male Right Angle Crimp Plug K for CommScope 735 Kings 2026-17-9 N G T $6.17 $6.07 $5.97
RFB-1710-Q 10 Male Right Angle Crimp Plug Q for RG-6/U N/A N G T $6.17 $6.07 $5.97
RFB-1710-R 10 Male Right Angle Crimp Plug R for RG-11/U N/A N G T $6.17 $6.07 $5.97
RFB-1710-S 11 Male Right Angle Crimp Plug S for RG-179/U Huber Suhner 16 BNC-75-2-3 N G D $6.17 $6.07 $5.97
RFB-1710-W 8 Male Right Angle Crimp Plug W for CommScope 734A Kings 2026-16-9 N G T $6.17 $6.07 $5.97
RFB-1711 12 Female Right Angle PCB Mount N/A N/A Amphenol 31-71043 N G T $2.71 $2.61 $2.51
RFB-1711-1 13 Female Vertical PCB Mount N/A N/A Amphenol 31-71045 N G T $2.71 $2.61 $2.51
RFB-1712-B 14 Female R/A Lo-Profile PCB Mount N/A wIth Post Legs, Black Amphenol 31-71053 N G P $2.09 $1.99 $1.89
RFB-1712-W 14 Female R/A Lo-Profile PCB Mount N/A with Post Legs, White Amphenol 31-71052 N G P $1.88 $1.78 $1.68
RFB-1713-1B 15 Female Vertical PCB Mount N/A with Post Legs, Black Amphenol 31-71059 N G P $2.35 $2.25 $2.15
,

s Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

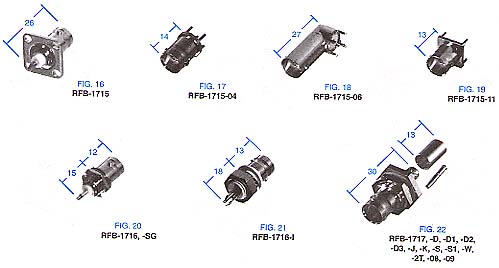

RFB-1715 16 Female Jack Panel Mount N/A 4 Hole Flange Huber Suhner 23 BNC-75-0-10 N G T $3.39 $3.29 $3.19
RFB-1715-04 17 Female Vertical PCB Mount N/A 4 Leg Amphenol 31-5329-72 N G T $1.96 $1.86 $1.76
RFB-1715-06 18 Female Right Angle PCB Mount N/A Long,, Diecast Zinc N/A N G T $3.42 $3.32 $3.22
RFB-1715-11 19 Female Vertical PCB Mount N/A 4 Legs on 400 Centers Huber Suhner 82 BNC-75-0-2  N G T $2.75 $2.65 $2.55
RFB-1716 20 Female Bulkhead Jack N/A Front Mount with D-Flat, Diecast Zinc Amphenol 31-71004 N G D $1.24 $1.14 $1.04
RFB-1716-I 21 Female Bulkhead Jack N/A Front Mount with D-Flat, Insulated Amphenol 31-10-75 N G A $2.53 $2.43 $2.33
RFB-1717 22 Female Crimp Bulkhead Jack D Rear Mount with D-Flat & O-Ring, for RG-59/U Amphenol 31-71011-RFX N G D $3.11 $3.01 $2.91
RFB-1717-D 22 Female Crimp Bulkhead Jack D Rear Mount with D-Flat & O-Ring, for RG-59/U Amphenol 31-71011 N G T $3.84 $3.74 $3.64
RFB-1717-D1 22 Female Crimp Bulkhead Jack D1 Rear Mount w/ D-Flat & O-Ring, for Belden 8212 N/A N G T $4.22 $4.12 $4.02
RFB-1717-D2 22 Female Crimp Bulkhead Jack D2 Rear Mount w/ D-Flat & O-Ring, for Belden 8279 N/A N G T $4.22 $4.12 $4.02
RFB-1717-D3 22 Female Crimp Bulkhead Jack D3 Rear Mount w/ D-Flat & O-Ring, for RG-59/U Type N/A N G T $4.22 $4.12 $4.02
RFB-1717-J 22 Female Crimp Bulkhead Jack J Rear Mount with D-Flat & O-Ring, for Belden 8218 N/A N G T $3.84 $3.74 $3.64
RFB-1717-K 22 Female Crimp Bulkhead Jack K Rear Mount with D-Flat & O-Ring, for CommScope 735 N/A N G T $3.86 $3.76 $3.66

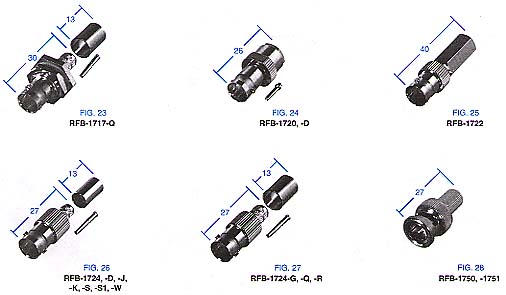

RFB-1717-Q 23 Female Crimp Bulkhead Jack Q Rear Mount with D-Flat & O-Ring, for RG-6/U Kings 2022-29-9 N G T $3.86 $3.76 $3.66
RFB-1717-S 22 Female Crimp Bulkhead Jack S Rear Mount with D-Flat & O-Ring, Solder Only Pin, for RG-179/U Amphenol 31-70016 N G T $3.86 $3.76 $3.66
RFB-1717-S1 22 Female Crimp Bulkhead Jack S1 Rear Mount with D-Flat & O-Ring, for RG-179/U Double Shield Amphenol 31-70016-1000 N G T $4.53 $4.43 $4.33

Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249
 RFB-1717-W 22 Female Crimp Bulkhead Jack W Rear Mount with D-Flat & O-Ring, for CommScope 734A Kings 2022-17-29 N G T  $3.84 $3.74 $3.64
RFB-1720 24 Female Clamp Jack D for RG-59/U UG-261C/U N S T $2.60 $2.50 $2.40
RFB-1722 25 Female Twist-On Jack D for RG-59/U N/A N S D $2.45 $2.35 $2.25
RFB-1724 26 Female Crimp Jack D for RG-59/U N/A N G D $2.14 $2.04 $1.94
RFB-1724-D 26 Female Crimp Jack D for RG-59/U Amphenol 31-70009 N G T $2.45 $2.35 $2.25
RFB-1724-G 27 Female Crimp Jack G for Belden 8281 N/A N G T $2.44 $2.34 $2.24
RFB-1724-J 26 Female Crimp Jack J for Belden 8218 N/A N G T $2.44 $2.34 $2.24
RFB-1724-K 26 Female Crimp Jack K for CommScope 735 N/A N G T $2.44 $2.34 $2.24
RFB-1724-Q 27 Female Crimp Jack Q for RG-6/U N/A N G T $2.67 $2.57 $2.47
RFB-1724-R 27 Female Crimp Jack R for RG-11/U N/A N G T $2.67 $2.57 $2.47
RFB-1724-S 26 Female Crimp Jack S for RG-179/U Amphenol 31-71014-RFX N G T $2.45 $2.35 $2.25
RFB-1724-S1 26 Female Crimp Jack S1 for RG-179/U Double Shield N/A N G T $3.31 $3.21 $3.11
RFB-1724-W 26 Female Crimp Jack W for CommScope 734A N/A N G T $2.45 $2.35 $2.25
RFB-1750 28 Male Termination N/A 75 Ohm, 1/2 Watt Kings 2555-3-32 N G T $2.26 $2.16 $2.06
RFB-1751 28 Male Termination N/A 93 OHm, 1/2 Watt N/A N G T $2.26 $2.16 $2.06
