Welcome to our RF circulators, microwave circulators, RF & Microwave circulators, with type n connectors selection guide. If you do not see the rf circulator or microwave circulator that you are looking for please contact us via email so we may look at your requirement and quote accordingly.

RF Microwave Circulators

Type N Connectors



FREQUENCY
GHZ		 MODEL ISOLATION dB (Min.) INS. LOSS dB
(Max.)		 VSWR
(Max.)		   TEMP
( C ° )		  POWER (WATTS) DIMENSIONS (INCHES)
L X W X T		 PACKAGE OUTLINE
FWD REV
0.380-0.470 HD0042CAN 20 0.40 1.25 -20+71 250 250 2.25 X 2.25 X 1.00 NQC
0.400-0.500 HD0045CAN 20 0.40 1.25 -20+71 250 250 2.25 X 2.25 X 1.00 NQC
0.500-0.600 HD0055CAN 20 0.40 1.25 -20+71 250 250 2.00 X 2.00 X 1.00 NRC
0.600-0.750 HD0067CAN 20 0.40 1.25 -30+85 250 250 1.75 X 1.75 X 1.00 NSC
0.700-0.830 HD0076CAN 20 0.40 1.25 -30+85 250 250 1.50 X 1.50 X 0.75 NTC
0.790-0.960 HD0088CAN 20 0.40 1.25 -30+85 250 250 1.50 X 1.50 X 0.75 NTC
0.900-1.100 HD0100CAN 23 0.35 1.20 -30+85 150 150 1.25 X 1.25 X 0.75 EC
0.915-0.964 HD0094CAN 23 0.35 1.20 -40+85 150 150 1.25 X 1.25 X 0.75 EC
0.960-1.215 HD0109CAN 20 0.40 1.25 -40+85 150 150 1.25 X 1.25 X 0.75 EC
1.100-1.300 HD0120CAN 23 0.35 1.20 -40+85 150 150 1.25 X 1.25 X 0.75 EC
1.200-1.400 HD0130CAN 23 0.35 1.20 -40+85 150 150 1.25 X 1.25 X 0.75 EC
1.400-1.600 HD0150CAN 23 0.35 1.20 -40+85 150 150 1.25 X 1.25 X 0.75 EC
1.500-1.800 HD0165CAN 23 0.35 1.20 -40+85 150 150 1.00 X 1.00 X 0.75 FC
1.700-2.000 HD0185CAN 20 0.35 1.25 -40+85 150 150 1.00 X 1.00 X 0.75 FC
1.700-2.300 HD0200CEN 20 0.40 1.25 -10+85 50 50 1.63 X 1.63 X 0.75 NYC
1.800-2.100 HD0195CAN 20 0.35 1.25 -40+85 150 150 1.00 X 1.00 X 0.75 FC
1.930-1.990 HD0196CAN 23 0.35 1.20 -40+85 150 150 1.00 X 1.00 X 0.75 FC
2.000-2.300 HD0215CAN 20 0.35 1.25 -40+85 150 150 1.00 X 1.00 X 0.75 FC
2.100-2.400 HD0225CAN 20 0.35 1.25 -40+85 150 150 1.00 X 1.00 X 0.75 FC
2.300-2.700 HD0250CAN 20 0.40 1.25 -40+85 150 150 1.00 X 1.00 X 0.75 FC
2.400-2.500 HD0245CAN 23 0.35 1.20 -40+85 150 150 1.00 X 1.00 X 0.75 FC
2.700-3.100 HD0290CEN 20 0.40 1.25 -20+85 50 50 1.00 X 1.00 X 0.75 FC
2.800-3.300 HD0305CEN 20 0.40 1.25 -20+85 50 50 1.00 X 1.00 X 0.75 FC
3.400-4.200 HD0380CEN 20 0.40 1.25 -20+85 50 50 1.00 X 1.00 X 0.75 FC
3.600-4.300 HD0395CEN 20 0.40 1.25 -40+85 50 50 1.00 X 1.00 X 0.75 FC
4.200-5.000 HD0460CEN 20 0.40 1.25 -40+85 50 50 1.00 X 1.00 X 0.75 FC
4.600-5.400 HD0500CEN 20 0.40 1.25 -40+85 50 50 1.00 X 1.00 X 0.75 FC
5.000-6.000 HD0550CEN 20 0.40 1.25 -40+85 50 50 1.00 X 1.00 X 0.75 FC
5.400-5.900 HD0565CEN 23 0.35 1.20 -40+85 50 50 1.00 X 1.00 X 1.00 FC
5.700-6.800 HD0625CEN 20 0.40 1.25 -40+85 50 50 1.00 X 1.00 X 0.75 FC
5.800-6.500 HD0615CEN 23 0.35 1.20 -40+85 50 50 1.00 X 1.00 X 0.75 FC
6.000-8.000 HD0700CEN 20 0.40 1.25 -40+85 50 50 1.00 X 1.00 X 0.75 FC
6.400-7.200 HD0680CEN 23 0.35 1.20 -40+85 50 50 1.00 X 1.00 X 0.75 FC
FREQUENCY
GHZ		 MODEL ISOLATION dB (Min.) INS. LOSS dB (Max.) VSWR
(Max.)		   TEMP
( C° )		 FWD REV DIMENSIONS (INCHES)
L X W X T		 PACKAGE OUTLINE
 POWER (WATTS)

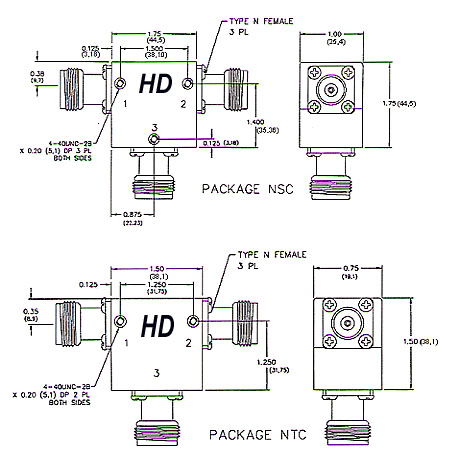

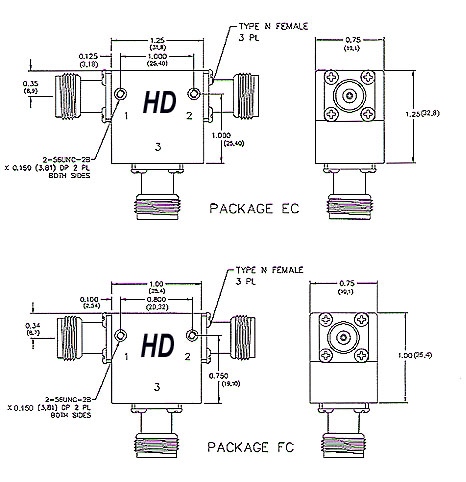

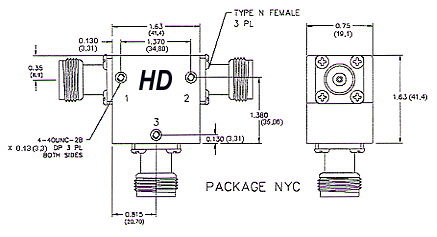

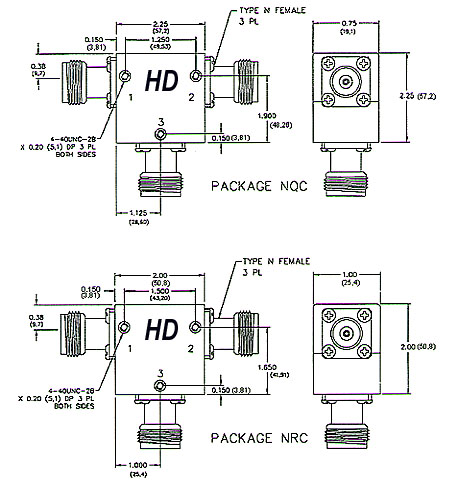

 Outline Drawings
