Welcome to our RF Microwave cable assembly selection guide
if you do not see what you are looking for please send us an email request

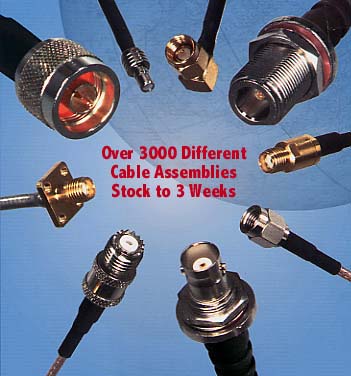

Flexible Laboratory and Utility Cable Assemblies

We Just Launched A New Website For RF Microwave Cable and Assemblies

Please Go Here For Additional Cable And Assemblies

Durable and easy to use, SMA cable assemblies offer an innovative primary shield design featuring a silver plated, flat copper strip instead of conventional round wire. The rugged triple braid construction supplies 100% coverage for maximum isolataion and mechanical integrity of the highest order. Operating up to 26 GHz, Coaxi-Flex Cable Assemblies are available in .195" and .120" diameters, in lengths of 18, 24,30,36,48,60,72,up to 120 inches.

 Electical Specs. (Typ.)
Impendance: 50 Ohms ± 2 Ohms
Capacitance: 29.3 pF/ft. nom.
(measured at 60 Hz)
Propagation Velocity: 69.5% ± 1% (.195 dia.)
70.0% ± 1% (.120 dia.)
Dielectric Strength: 5000 VRMS 60 Hz
Operating Voltage: 1900 VRMS 50 Hz (.195 dia.)
1500 VRMS 60 Hz (.129 dia.)
Higher Mode cutoff: 34 Ghz (.195 dia.)
60 GHz (.120 dia.)

 Mechanical
 Remarks
Jacket: .195" ± .005" (.195 dia.)
.116" ± .003" (.120 dia.)		 Extruded FEP - color Red
Shield #3: .150" ± .005" (.195 dia.)
.095" ± .003" (.120 dia.)		 AWG #36 Silvered Copper minimum coverage 96%
Shield #2: .130" ± .005" (.195 dia.)
.080" ± .003" (.120 dia.)		 Aluminum/KAPTON* tape (*Kaptron is a registered trademark of EI Dupont de Nemours & Co. Inc.)
Shield #1: .126" ± .005" (.195 dia.)
.072" ± .002" (.120 dia.)		 Flat Silver-plated Copper minimum coverage 96%
Dielectric: .116" ± .005" ( 195 dia.)
,066" ± .002" (.120 dia)		 PTFE Type F-1 per MIL-C-17
Conductor: .037" ± .001" (.195 dia.)
.020" ± .001: (.120 dia)		 SPCW per ASTM B 501 cl. 40A
Operating Temp: -55° to 200° C
Safe Bend Radius: 1.00" (.195 dia.)
0.25" (.120 dia.)		 to inside of bend
to inside of bend
Weight: 3.75 lbs./100 ft. (.195 dia)
1.45 lbs./100 ft. (.120 dia)		 (5.58 Kg/100M)
(2.16 Kg/100M)

Attenuation (max @ 25% - still air)

Avg. Power Handling
 .195
F, GHz		 .195
db / 100ft		 .120
F, GHz		 .120
db / 100 ft.		  .195 Watts .120 Watts
.100 3.80 .100 7.4 2300 500
.500 8.52 .500 16.8 850 225
1.000 12.8 1.000 22.5 550 150
5.000 29.5 5.000 56.0 225 66
10.000 44.7 10.000 82.3 150 45
15.000 57.0 15.000 106.0 120 36
18.000 63.2 18.000 116.0 110 31
20.000 67.5 20.000 125.0 105 30
22.000 71.0 30.000 156.0 100 24
----- ----- 40.000 200.0 --- 19

 .195 .120
A02349201-018 A021056301-018
A02349201-024 A020159301-024
A02349201-030 A020159301-030
A02349201-036 A021059301-036

 A02349201-048

 A021059301-048

 A02349201-060

 A021059301-060

  A02349201-072

 A021059301-072

  A02349201-120

 A021059301-120


Note: The last 3 digits of the part # indicate length in inches.
