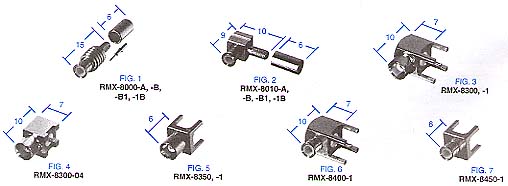

| PART # | Fig | Description | Cbl Grp | NOTES |
PLATING BDY |
PLATING P/C |
PLATING DIE |
PRICE QTY. 10-49 |
PRICE QTY. |
PRICE QTY. |
| RMX-8000-B | 1 | Male Crimp Plug | B | for RG-174/U | N | G | T | $3.68 | $3.58 | $3.48 |
| RMX-8000-B1 | 1 | Male Crimp Plug | B1 | for RG-316/U Double Shield | N | G | T | $4.51 | $4.41 | $4.31 |
| RMX-8000-1B | 1 | Male Crimp Plug | B | for RG-174/U | G | G | T | $3.87 | $3.77 | $3.67 |
| RMX-8010-B | 2 | Male Right Angle Crimp Plug | B | for RG-174/U | N | G | T | $6.57 | $6.47 | $6.37 |
| RMX-8010-B1 | 2 | Male Right Angle Crimp Plug | B1 | for RG-316/U Double Shield | N | G | T | $3.47 | $3.37 | $3.27 |
| RMX-8010-1B | 2 | Male Right Angle Crimp Plug | B | for RG-174/U | G | G | T | $6.80 | $6.70 | $6.60 |
| RMX-8300 | 3 | Female Right Angle Jack PCB Mount | N/A | N/A | N | G | T | $5.52 | $5.42 | $5.32 |
| RMX-8300-1 | 3 | Female Right Angle Jack PCB Mount | N/A | N/A | G | G | T | $5.70 | $5.60 | $5.50 |
| RMX-8300-04 | 4 | Female Right Angle Jack PCB Mount | N/A | Surface Mount | G | G | T | $5.38 | $5.28 | $5.18 |
| RMX-8350 | 5 | Female Vertical Jack PCB Mount | N/A | N/A | N | G | T | $3.95 | $3.85 | $3.75 |
| RMX-8350-1 | 5 | Female Vertical Jack PCB Mount | N/A | N/A | G | G | T | $4.28 | $4.18 | $4.08 |
| RMX-8400-1 | 6 | Male Right Angle PCB Mount | N/A | N/A | G | G | T | $5.84 | $5.74 | $5.64 |
| RMX-8450-1 | 7 | Male Vertical PCB Mount | N/A | N/A | G | G | T | $4.44 | $4.34 | $4.24 |
 |
|
|
