Welcome to our Mini UHF 50 ohm RF Connectors, UHF RF Connectors, RF Microwave connectors,microwave connectors and RF coaxial connector selection guide if you do not see what you are looking for please send us an email request

Mini UHF - 50 Ohm Connectors


Dielectric Key

D - DELRIN

P - POLYPROPYLENE

PH - PHENOLIC

T - TEFLON

Plating Key

N - NICKEL

S - SILVER

G - GOLD

C - BLACK CHROME



Click here to see Mini UHF 50 Ohm Connectors Cable Groups

Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES  REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

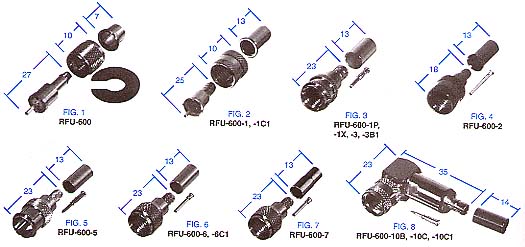

RFU-600 1 Male Push-On Fenale Plug C No Installation Tools Needed, for RG-58/U Amphenol 81-0103 N S T $2.18 $2.08 $1.98
RFU-600-1 2 Male Crimp Plug C AMP Drawn Metal Type, for RG-58/U N/A N G D $1.42 $1.32 $1.22
RFU-600-1C1 2 Male Crimp Plug C1 for RG-142/U N/A N G D $2.12 $2.02 $1.92
RFU-600-1P 3 Male Crimp Plug P for Proflex N/A N G D $1.97 $1.87 $1.77
RFU-600-1X 3 Male Crimp Plug X for RG-8X & Times LMR-240 Amphenol 81-114 N G D $2.05 $1.95 $1.85
RFU-600-2 4 Male Crimp Plug C Short, Diecast Zinc, for Onaglass Antennas, Black, for RG-58/U Amphenol 81-115BK-1000 C G D $1.82 $1.72 $1.62
RFU-600-3 3 Male Crimp Plug B for RG-174/U N/A N G T $2.03 $1.93 $1.83
RFU-600-3B1 3 Male Crimp Plug B1 for RG-316/U Double Shield N/A N G T $2.97 $2.87 $2.77
RFU-600-5 5 Male Crimp Plug C Quick Disconnect, for RG-58/U N/A N G D $1.92 $1.82 $1.72
RFU-600-6 6 Male Crimp Plug C for RG-58/U AMP 2266-001 Amphenol 81-115 N S D $2.08 $1.98 $1.88
RFU-600-6C1 6 Male Crimp Plug C1 for RG-142/U N/A N S D $2.89 $2.79 $2.69
RFU-600-7 7 Male Crimp Plug M for Motorola White Teflon & Belden 89907 N/A N G T $2.29 $2.19 $2.09
RFU-600-10C 8 Male R/A Crimp Plug C for RG-174/U N/A N G T $8.48 $8.38 $8.28
RFU-600-10C1 8 Male R/A Crimp Plug C1 for RG-58/Ufor RG-142/U N/A N G T $7.02 $6.92 $6.82


back to top

Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES  REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

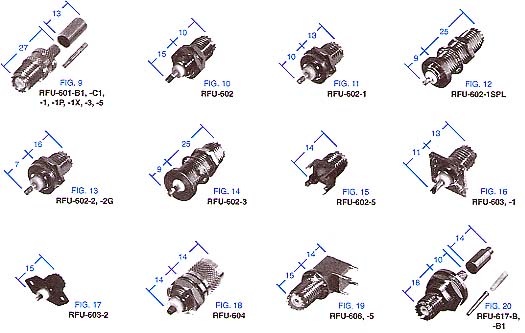

RFU-601-B1 9 Female Crimp Jack B1 for RG-316/U Double Shield N/A N G T $4.10 $4.00 $3.90
RFU-601-C1 9 Female Crimp Jack C1 for RG-142/U N/A N S D $1.85 $1.75 $1.65
RFU-601-1 9 Female Crimp Jack C for RG-58/U AMP 2266-02-1 Amphenol 81-116 N S D $1.51 $1.41 $1.31
RFU-601-1P 9 Female Crimp Jack P for Proflex N/A N S D $2.46 $2.36 $2.26
RFU-601-1X 9 Female Crimp Jack X fo RG-8X & Times LMR-240 Amphenol 81-117 N S D $2.46 $2.36 $2.26
RFU-601-3 9 Female Crimp Jack B for Rg-174/U N/A N G T $3.21 $3.11 $3.01
RFU-601-5 9 Female Crimp Jack D for RG-59/U N/A N S T $2.04 $1.94 $1.84
RFU-602 10 Female Bulkhead Jack N/A Front Mount with D-Flat N/A N G T $2.82 $2.72 $2.62
RFU-602-1 11 Female Bulkhead Jack N/A Rear Mount, with .5" threaded Length & D-Flat N/A N S T $2.84 $2.74 $2.64
RFU-602-1SPL 12 Female Bulkhead Jack N/A Rear Mount, with .92" Threaded Length & Double D-Flat N/A N S T $2.68 $2.58 $2.48
RFU-602-2 13 Female Bulkhead Jack N/A Rear Mount, with .6" Threaded Length & D-Flat Amphenol 81-120 N S T $2.50 $2.40 $2.30
RFU-602-3 14 Female Bulkhead Jack N/A Rear Mount, with 1" Threaded Length & Double D-Flat N/A N S T $2.50 $2.40 $2.30
RFU-603 16 Female Panel Mount Jack N/A 4 Hole Flange AMP 2266011 Amphenol 81-118 N G T $2.92 $2.82 $2.72
RFU-603-1 16 Female Panel Mount Jack N/A 4 Hole Flange, Diecast Zinc N/A N S PH $1.37 $1.27 $1.17
RFU-603-2 17 Female Panel Mount Jack N/A 2 Hole Flange Short, Black Body, Diecast Zinc N/A C G D $2.71 $2.61 $2.51
RFU-606 19 Female R/A Jack PCB Mount N/A with Double D-Flat, Diecast Zinc Motorola 0983228R01 Amphenol 81-119-1002 N S P $2.54 $2.44 $2.34
RFU-606-5 19 Female R/A Jack PCB Mount N/A with Double D-Flat, Diecast Zinc AMP 415070-2 T T P $2.73 $2.63 $2.53
RFU-617-B 20 Female Crimp Bulkhead Jack B Rear Mount, for RG-174/U AMP 228903-4 N G D $3.25 $3.15 $3.05
RFU-617-B1 20 Female Crimp Bulkhead Jack B1 for RG-316/U Double Shied N/A N G D $4.14 $4.04 $3.94
c,
