HD Communications Corp. offers an extensive range of RF Microwave Products for the wireless and communication markets. Our technical staff has been serving the electronics, and communication industry for more than 30 years. We welcome you to view our website and as always, feel free to contact our technical support department for any requirements that you may not find solutions for on our website.

Welcome to our microwave mixer, double balanced mixers, triple balanced mixers, and millimeter wave mixer selection guide.
If you do not see what you are looking for please contact us via email
so we may look at your requirement and quote accordingly.


RF Microwave Double And Triple Balanced Mixers

 Double and Triple Balanced Mixers From DC to 40 GHz

Delivery Stock - 8 weeks

Double Balanced Ultra Broadband Mixers
 HD Stock # Mixer Frequency Range  Conversion Loss  RF-IF  Package
 RF/LO (GHz) IF (GHz)  Isolation ( dB ) (Typ.) Style
HD12479 1-30 DC to .50 9.5 25 HD3
HD12480 2-18 DC to .75 8.5 30 HD2
HD12481 2-18 DC to .75 8.5 30  HD1
HD12482 4-26 DC to 2 9.5 20 HD4
HD12483 4-40 DC to 2 10 30 HD4

Double Balanced High Isolation Mixersc
 HD Stock # Mixer Frequency Range  Conversion Loss  RF-IF  Package
 RF/LO (GHz) IF (GHz)  Isolation ( dB ) (Typ.)  Style
HD12488 0.5-2 DC to 0.5 8.5 30  HD3
HD12489 1-4 DC to 1 7.0 30  HD1
HD12490 2-8 DC to 2 8.0 30  HD2
HD12491 4-8 DC to 2 6.0 30  HD2
HD12492 4-12 DC to 4 7.0 30  HD2
HD12493 8-12 DC to 4 6.0 30 HD2
HD12494 5-20 DC to 8 9.0 40 HD4

Triple Balanced Microwave IF Mixers
 HD Stock # Mixer Frequency Range  Conversion Loss  RF-IF  Package
 RF/LO (GHz) IF (GHz)  Isolation ( dB ) (Typ.) Style
HD12484 2-18 0.5 to 8 9.5  20 HD2
HD12485 2-18 0.5 to 8 9.5  20 HD1
HD12486 2-26 0.5 to 8 12  20 HD2
HD12487 4-40 0.5 to 20 12  30 HD4

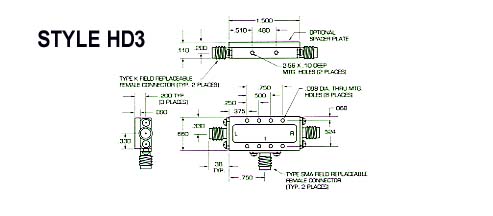

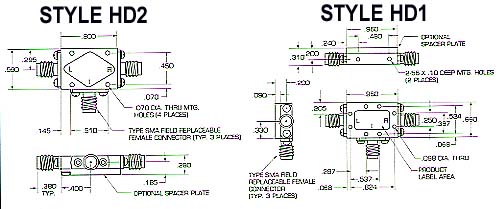

 Outline Drawings
