Shielded Enclosures

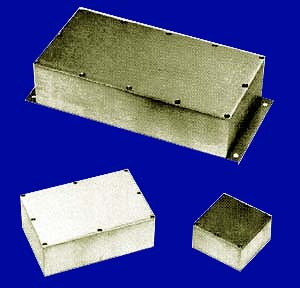

 RFT Series Enclosures

  • RFT Series Enclosures have shielding capabilities to 60 dB at 3 GHz
  • Independent access from either side
  • Greater Interior Acreage
    Construction specs: Case - AL6063T52; Covers - A5052-H32; finish chemical film per IL C 5541 Class 1A; Conformance to MIL-45208A

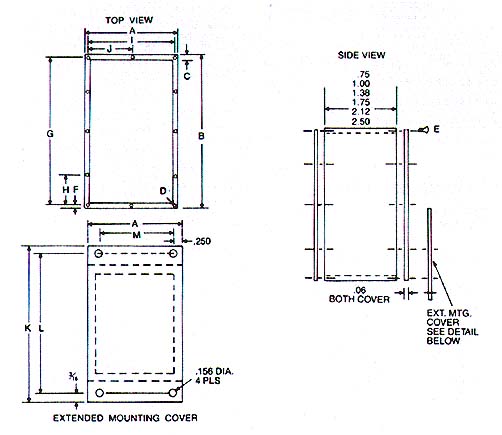

 HD Part # A B C D* E F G H I J K L M
HDR51080 1.00 1.00 .125 4 0-80 .070 .860 -- .860 -- 1.75 1.375 .50
HDR51090 1.25 1.25 .125 4 0-80 .070 1.110 -- 1.110 -- 2.00 1.625 .75
HDR51095 1.25 2.50 .125 6 0-80 .070 2.360 1.180 1.110 -- 3.25 2.875 .75
HDR51100 1.50 1.50 .125 6 0-80 .070 1.360 .680 1.360 -- 2.25 1.875 1.00
HDR51110 1.50 2.00 .125 6 0-80 .070 1.860 .930 1.360 -- 2.75 2.375 1.00
HDR51120 1.50 2.50 .125 6 0-80 .070 2.360 1.180 1.360 -- 3.25 2.875 1.00
HDR51125 1.50 3.25 .125 6 0-80 .070 3.110 1.555 1.360 -- 4.00 3.625 1.00
HDR51130 1.50 6.00 .125 10 0-80 .070 5.860 1.465 1.360 -- 6.75 6.375 1.00
HDR51140 1.75 1.75 .125 6 0-80 .070 1.610 .085 1.610 -- 2.50 2.125 1.25
HDR51150 1.75 3.00 .125 6 0-80 .070 2.860 1.430 1.610 -- 3.75 3.375 1.25
HDR51160 2.00 2.00 .125 8 0-80 .070 1.860 .930 1.860 .930 2.75 2.375 1.50
HDR51170  2.00 3.00 .125 8 0-80 .070 2.860 1.430 1.860 .930 3.75 3.375 1.50
HDR51180 2.00 4.00 .125 10 0-80 .070 3.860 1.286 1.860 .930 4.75 4.375 1.50
HDR51190  2.00 5.00 .125 12 0-80 .070 4.860 1.215 1.860 .930 5.75 5.375 1.50
HDR51200 2.00 6.00 .125 12 0-80 .070 5.860 1.465 1.860 .930 6.75 6.375 1.50
HDR51205 2.50 2.50 .125 8 0-80 .070 2.360 1.180 2.360 1.180 3.25 2.875 2.00
HDR51210 3.00 3.00 .125 8 0-80 .070 2.860 1.430 2.860 1.430 3.75 3.375 2.50
HDR54030 3.00 4.00 .125 10 0-80 .070 3.860 1.287 2.860 1.430 4.750 4.375 2.50
HDR51235 4.00 4.00 .125 12 0-80 .070 3.860 1.287 3.860 1.287 4.750 4.375 3.50
HDR51220  3.00 5.00 .125 12 0-80 .070 4.860 1.215 2.860 1.430 5.75 5.375 2.50
HDR51225 3.00 5.00 .188 12 2-56 .094 4.812 1.203 2.812 1.406 5.75 5.375 2.50
HDR51230 3.00 6.00 .188 12 2-56 .094 5.812  1.453 2.812 1.406 6.75 6.375 2.50
HDR51250 5.00 6.00 .188 14 2-56 .094 5.812 1.453 4.812 1.604 6.75 6.375 4.50
HDR57050 5.00 7.00 .188 16 2-56 .095 6.810 1.362 4.812 1.604 7.750 7.375 4.50
HDR58060 6.00 8.00 .188 18 2-56 .095 7.810 1.562 5.812 1.453 8.750 8.375 5.50
HDR58010 8.00 10.00 .187 22 2-56 .095 9.810 1.635 7.810 1.562 10.750 1.375 7.50
*D=number of cover screws                               Specifications subject to change without notice
