Welcome to our TNC 50 ohm RF Connectors, TNC Connectors, RF Microwave connectors,microwave connectors and RF coaxial connector selection guide if you do not see what you are looking for please send us an email request

TNC - 50 Ohm Connectors

Dielectric Key

A - ABS (VALOX)

D - DELRIN

P - POLYPROPYLENE

T - TEFLON

Plating Key

N - NICKEL

S - SILVER

G - GOLD

C - BLACK CHROME



Click here to see TNC - 50 Ohm Connectors Cable Groups
0SMA, bnc, tMin Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

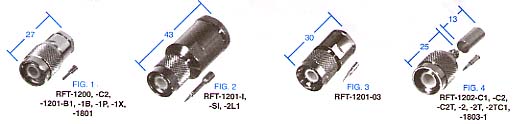

RFT-1200 1 Male Clamp Plug C,C1 for RG-58/U & RG-142/U MS39012/26-0101 N G T $2.63 $2.53 $2.43
RFT-1200-C2 1 Male Clamp Plug C2 for Times LMR-200 N/A N S T $3.60 $3.50 $3.40
RFT-1201-B1 1 Male Clamp Plug B1 for RG-316/U Double Shield N/A N G T $4.60 $4.50 $4.40
RFT-1201-SI 2 Male Clamp Plug I for Belden 9913 & Times LMR-400 N/A S G T $5.69 $5.59 $5.49
RFT-1201-03 3 Male Clamp Plug N/A for Fujikura 5D-FB Cable N/A N G T $3.76 $3.66 $3.56
RFT-1201-1P 1 Male Clamp Plug P for Proflex MS39021/26-0102 N G T $2.08 $1.98 $1.88
RFT-1201-1X 1 Male Clamp Plug X for RG-8/X & Times LMR-240 N/A N G T  $3.06 $2.96 $2.86
RFT-1202-C1 4 Male Crimp Plug C1 for RG-142/U N/A N G D $1.92 $1.82 $1.72
 RFT-1202-C2 4 Male Crimp Plug C2 for Times LMR-200  N/A N G D $1.86 $1.76 $1.66
RFT-1202-C2T 4 Male Crimp Plug C2 for Times LMR-200 N/A N G T $2.89 $2.79 $2.69
RFT-1202-2 4 Male Crimp Plug C for RG-58/U MS39012/26-0011 N G D $1.84 $1.74 $1.64

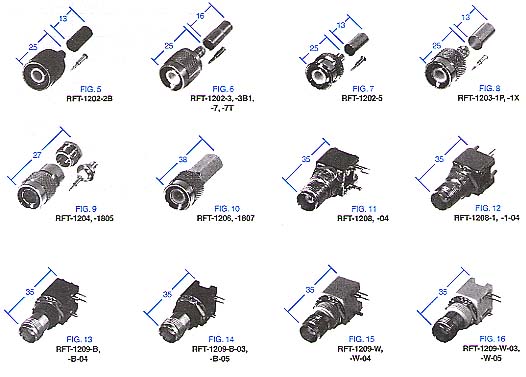

RFT-1202-2B 5 Male Crimp Plug C for RG-58/U, Black MS39012/26-0011 C G D $2.35 $2.25 $2.15
RFT-1202-2T 4 Male Crimp Plug C for RG-58/U MS39012/26-0011 N G T $2.34 $2.24 $2.14
RFT-1202-2TC1 4 Male Crimp Plug C1 for RG-142/U MS39012/26-0011 N G T $3.00 $2.90 $2.80
RFT-1202-3 6 Male Crimp Plug B for RG-174/U N/A N G D $3.03 $2.93 $2.83
RFT-1202-3B1 6 Male Crimp Plug B1 for RG-316/U Double Shield N/A N G D $3.58 $3.48 $3.38


back to topc

Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249
RFT-1202-5 7 Male Crimp Plug C Quick Disconnect, for RG-58/U N/A  N G D $2.26 $2.16 $2.06
RFT-1202-7 6 Male Crimp Plug M for Motorola White Teflon or Belden 89907 N/A  N G D $2.00 $1.90 $1.80
RFT-1202-7T 6 Male Crimp Plug M for Motorola White Teflon or Belden 89907 N/A  N G T $2.29 $2.19 $2.09
RFT-1203-1P 8 Male Crimp Plug P for Proflex N/A  N G D $2.34 $2.24 $2.14
RFT-1203-1X 8 Male Crimp Plug X for RG-8/X & Times LMR-240 N/A  N G D $2.34 $2.24 $2.14
RFT-1204 9 Male Solderless Plug C for RG-58/U N/A  N G D $1.08 $0.98 $0.88
RFT-1206 10 Male Twist-On Plug C for RG-58/U  AMP 221983-7 N G D $2.24 $2.14 $2.04
RFT-1208 11 Female Right Angle PCB Mount N/A with Triple D-Flat, Diecast Zinc N/A  N G P $4.77 $4.67 $4.57
RFT-1208-04 11 Female Right Angle PCB Mount N/A with Triple D-Flat, Diecast Zinc, No Hardware N/A  N G D $2.63 $2.53 $2.43
RFT-1208-1 12 Female Vertical PCB Mount N/A with Triple D-Flat, Diecast Zinc N/A  N G D $3.76 $3.66 $3.56
RFT-1208-1-04 12 Female Vertical PCB Mount N/A with Triple D-Flat, Diecast Zinc, No Hardware N/A  N G D $2.92 $2.82 $2.72
RFT-1209-B 13 Female R/A Low Profile PCB Mount N/A with D-Flat & Post Legs, Black N/A  A G P $2.85 $2.75 $2.65
RFT-1209-B-03 14 Female R/A Low Profile PCB Mount N/A with D-Flat & Snap Legs, Black N/A  A G P $2.92 $2.82 $2.72
RFT-1209-B-04 13 Female R/A Low Profile PCB Mount N/A with D-Flat & Post Legs, Black, No Hardware N/A  A G P $2.84 $2.74 $2.64
RFT-1209-B-05 14 Female R/A Low Profile PCB Mount N/A with D-Flat & Snap Legs, Black, No Hardware N/A  A G P $2.84 $2.74 $2.64
RFT-1209-W 15 Female R/A Low Profile PCB Mount N/A with D-Flat & Post Legs, White N/A  A G P $2.85 $2.75 $2.65
RFT-1209-W-03 16 Female R/A Low Profile PCB Mount N/A with D-Flat & Snap Legs, White N/A  A G P $2.84 $2.74 $2.64
RFT-1209-W-04 15 Female R/A Low Profile PCB Mount N/A with D-Flat & Post Legs, White, No Hardware N/A  A G P $2.75 $2.65 $2.55
RFT-1209-W-05 16 Female R/A Low Profile PCB Mount N/A with D-Flat & Snap Legs, White, No Hardware N/A  A G P $2.75 $2.65 $2.55
,


s back to top

Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

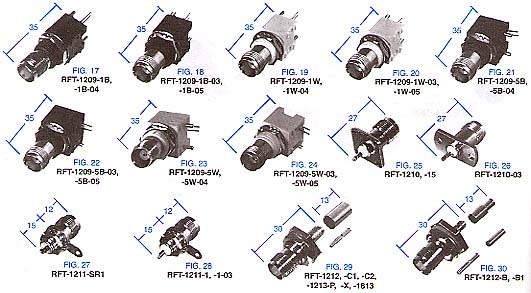

RFT-1209-1B 17 Female Vertical Low Profile PCB Mount N/A with D-Flat & Post Legs, Black  N/A  A G P $3.11 $3.01 $2.91
RFT-1209-1B-03 18 Female Vertical Low Profile PCB Mount N/A with D-Flat & Snap Legs, Black N/A  A G P $2.58 $2.48 $2.38
RFT-1209-1B-04 17 Female Vertical Low Profile PCB Mount N/A with D-Flat & Post Legs, Black, No Hardware N/A  A G P $3.03 $2.93 $2.83
RFT-1209-1B-05 18 Female Vertical Low Profile PCB Mount N/A with D-Flat & Snap Legs, Black, No Hardware N/A  A G P $2.50 $2.40 $2.30
RFT-1209-1W 19 Female Vertical Low Profile PCB Mount N/A with D-Flat & Post Legs, White N/A  A G P $3.11 $3.01 $2.91
RFT-1209-1W-03 20 Female Vertical Low Profile PCB Mount N/A with D-Flat & Snap Legs, White N/A  A G P $2.92 $2.82 $2.72
RFT-1209-1W-04 19 Female Vertical Low Profile PCB Mount N/A with D-Flat & Post Legs, White, No Hardware N/A  A G P $2.98 $2.88 $2.78
RFT-1209-1W-05 20 Female Vertical Low Profile PCB Mount N/A with D-Flat & Snap Legs, White, No Hardware N/A  A G P $2.84 $2.74 $2.64
RFT-1209-5B 21 Female R/A High Profile PCB Mount N/A with D-Flat & Post Legs, Black N/A  A G P $2.37 $2.27 $2.17
RFT-1209-5B-03 22 Female R/A High Profile PCB Mount N/A with D-Flat & Snap Legs, Black N/A  A G P $2.37 $2.27 $2.17
RFT-1209-5B-04 21 Female R/A High Profile PCB Mount N/A with D-Flat & Post Legs, Black, No Hardware N/A  A G P $2.37 $2.27 $2.17
RFT-1209-5B-05 22 Female R/A High Profile PCB Mount N/A Female D-Flat & Snap Legs, Black, No Hardware N/A  A G P $2.37 $2.27 $2.17
RFT-1209-5W 23 Female R/A High Profile PCB Mount N/A with D-Flat & Post Legs, White N/A  A G P $2.84 $2.74 $2.64
RFT-1209-5W-03 24 Female R/A High Profile PCB Mount N/A with D-Flat & Snap Legs, White N/A  A G P $2.84 $2.74 $2.64
RFT-1209-5W-04 23 Female R/A High Profile PCB Mount N/A with D-Flat & Post Legs, White, No Hardware N/A  A G P $2.75 $2.65 $2.55
RFT-1209-5W-05 24 Female R/A High Profile PCB Mount N/A with D-Flat & Snap Legs, White, No Hardware N/A  A G P $2.75 $2.65 $2.55
RFT-1210 25 Female Chassis Jack N/A 4 Hole Flange Mount with solder cup MS39012/32-0001  N G T  $2.03  $1.93  $1.83
RFT-1210-03 26 Female Chassis Jack N/A 2 Hole Flange Mount with solder cup N/A  N G T $4.04 $3.94 $3.84
RFT-1210-15 25 Female Chassis Jack N/A 4 Hole Flange Mount with solder cup, BeCu Contact and 3-56 UNF Tapped Holes N/A  N G T $4.52 $4.42 $4.32
RFT-1211-1 28 Female Bulkhead jack N/A Front Mount with D-Flat and solder cup MS39012/31-0001 N G T  $2.58  $2.48  $2.38
RFT-1211-1-03 28 Female Bulkhead Jack N/A Front Mount with D-Flat & Beryllium Copper Contact MS39012/31-0001 N G T $2.63 $2.53 $2.43
RFT-1212 29 Female Crimp Bulkhead Jack C Rear Mount with D-Flat & O-Ring, for RG-58/U N/A  N G D $3.44 $3.34 $3.24
RFT-1212-B 30 Female Crimp Bulkhead Jack B Rear Mount with D-Flat & O-Ring, for RG-174/U N/A  N G D $3.55 $3.45 $3.35
RFT-1212-B1 30 Female Crimp Bulkhead Jack B1 Rear Mount with D-Flat & O-Ring, for RG-316/U Double Shield N/A  N G D $4.35 $4.25 $4.15
RFT-1212-C1 29 Female Crimp Bulkhead Jack C1 Rear Mount with D-Flat & O-Ring, for RG-142 N/A  N G D $3.89 $3.79 $3.69
RFT-1212-C2 29 Female Crimp Bulkhead Jack C2 Rear Mount with D-Flat & O-Ring, for Times LMR-200 N/A  N G D $4.53 $4.43 $4.33
RFT-1213-P 29 Female Crimp Bulkhead Jack P Rear Mount with D-Flat & O-Ring, for Proflex N/A  N S D $2.29 $2.19 $2.09
RFT-1213-X 29 Female Crimp Bulkhead Jack X Rear Mnt with D-Flat & O-Ring, for RG-8/X & Times LMR-240 N/A  N G D $2.63 $2.53 $2.43


back to top

Min Order 10 Pieces
 PART # Fig  Description CBL GRP  NOTES REPLACES OR EQUIVALENT TO

PLATING

BDY

PLATING

P/C

 PLATING

DIE

 PRICE   QTY.

 10-49

 PRICE   QTY.

 50-99

 PRICE   QTY.

 100-249

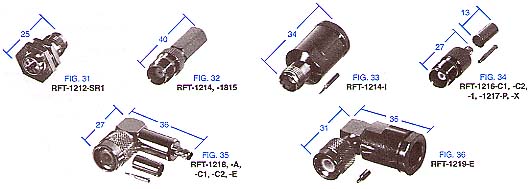

RFT-1214 32 Female Twist-On Jack C for RG-58/U  N/A  N G D $2.29 $2.19 $2.09
RFT-1214-I 33 Female Clamp Jack I for Belden 9913 & Times LMR-400 N/A  N G T $4.80 $4.70 $4.60
RFT-1216-C1 34 Female Crimp Jack C1 for RG-142/U N/A  N G D $3.62 $3.52 $3.42
RFT-1216-C2 34 Female Crimp Jack C2 for Times LMR-200 N/A  N G D $6.65 $6.55 $6.45
RFT-1216-1 34 Female Crimp Jack C for RG-58/U N/A  N G D $3.03 $2.93 $2.83
RFT-1217-P 34 Female Crimp Jack P for Proflex N/A  N G D $1.87 $1.77 $1.67
RFT-1217-X 34 Female Crimp Jack X for RG-8/X & Times LMR-240 N/A  N G D $2.84 $2.74 $2.64
RFT-1218 35 Male Right Angle Crimp Plug C for RG-58/U N/A  N G T $5.00 $4.90 $4.80
RFT-1218-C1 35 Male Right Angle Crimp Plug C1 for RG-142/U N/A  N G T $6.56 $6.46 $6.36
RFT-1218-C2 35 Male Right Angle Crimp Plug C2 for Times LMR-200 N/A  N G T $6.65 $6.55 $6.45
RFT-1219-E 36 Male Right Angle Clamp Plug E for RG-8/U N/A  N G T $7.76 $7.66 $7.56


back to top
