Welcome to our Z Communications VCO selection guide. We have over 150 different types of Z-Communications VCO's from 1MHz to 6 GHz. If you do not see what you are looking for please send us an email request

Z-Comm/HD CommVCO's

VCO'S AT $10.00 Each WOW!

To place an order for these VCO's
 Model # Package Frequency
V-0060* MINI 50-70 MHz
V-0120P* Leaded 90-140 MHz
V-120S* S 90-140 MHz
V-0140 MINI 110-170 MHz
V-0180 MINI 150-210 MHz
V-0250 MINI 200-300 MHz
V-0350 MINI 300-400 MHz
V-0450 MINI 400-500 MHz
V-0550* MINI 500-600 MHz
V-0600 MINI 400-800 MHz
V-0750* MINI 650-850 MHz
V-0880* MINI 860-900 MHz
V-0902* MINI 875-930 MHz
V-1150* MINI 1075-1150 MHz
V-2300A* MINBI 2300-2400 MHz

For quantities less than 5 or greater than 1000 pcs. please contact us for a quote.


*limited stock available then discontinued

VCO'S at $15.00 Each WOW !

To place an order for these VCO's
 Model # Package Frequency
SMV-1845 SUB 1815-1875 MHz
SMV-2100L SUB 2050-2150 MHz
SMV-2200L SUB 2150-2250 MHz
SMV-2500L SUB 2400-2485 MHz
V-0800* MINI 750-850 MHz
V-0965* MINI 950-980 MHz
V-1000* MINI 600-1200 MHz
V-1050 MINI 900-1200 MHz
V-1075* MINI 1050-1100 MHz
V-1100* MINI 700-1400 MHz
V-1200* MINI 800-1600 MHz
V-1400* Leaded 900-1900 MHz
V-1425P* Leaded 1350-1500 MHz
V-1425S* S 1350-1500 MHz
V-1800* MINI 1700-1900 MHz
V-1950 MINI 1900-2000 MHz
V-2000* S 1600-2200 MHz
V-2250* MINI 2000-2500 MHz
V-2300B* MINI 2200-2400 MHz
V-2500 MINI 2400-2600 MHz
V-3350* MINI 3100-3600 MHz

For quantities less than 5 or greater than 1000 pcs. please contact us for a quote.

*limited stock available then discontinued

Additional VCO's and Stock Listing

Z Comm Application Notes

Please use your browser back button to return to this page after reviewing the below application notes.

  • AN-100 (Mounting & grounding of leaded VCOs)
  • AN-101 (Mounting & grounding of surface mount VCOs)

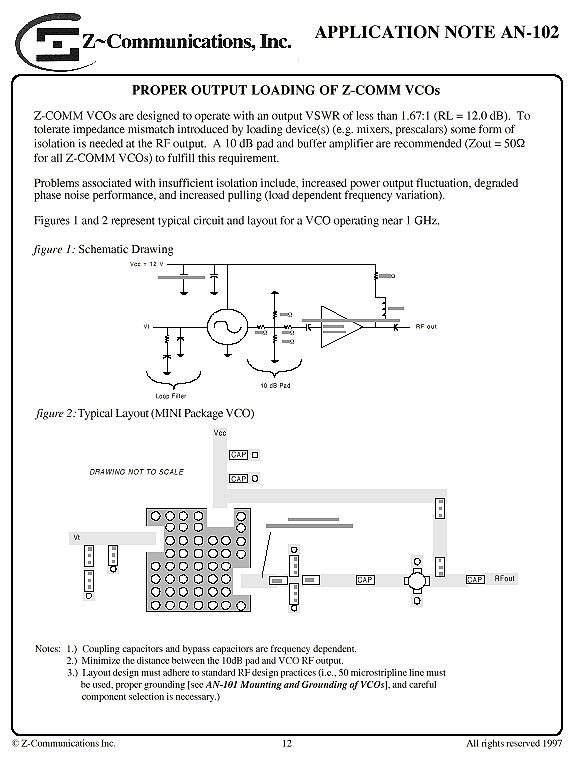

  • AN-102 (Proper output loading of VCOs)

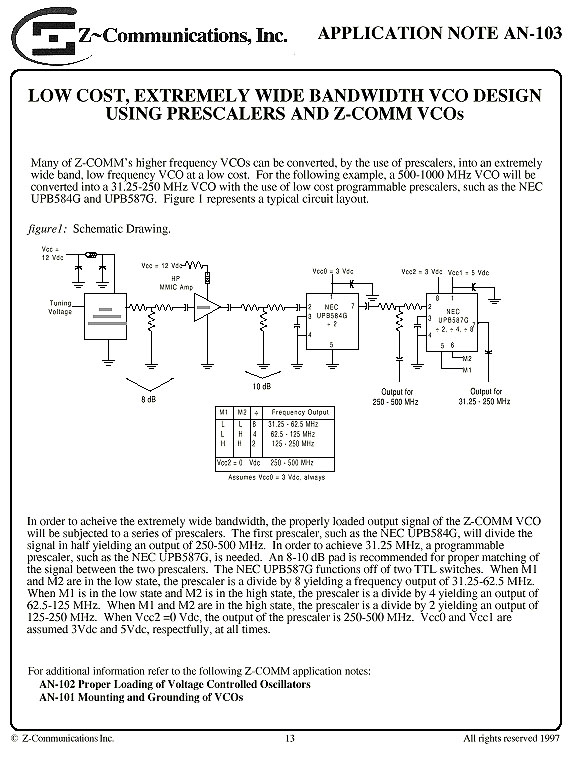

  • AN-103 (Low cost extremely wide bandwidth VCO design)
  • AN-104 (Using bipolar biasing to obtain the full tuning range capability of VCOs)

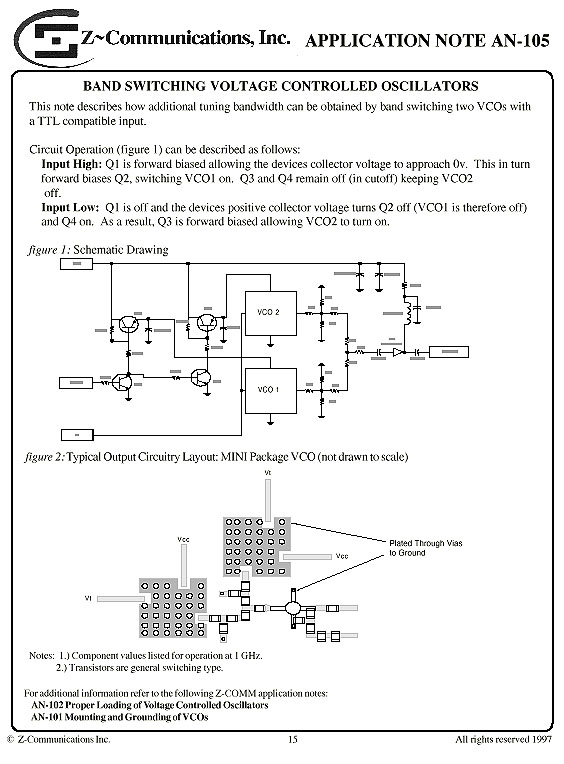

  • AN-105 (Using band switching VCOs)

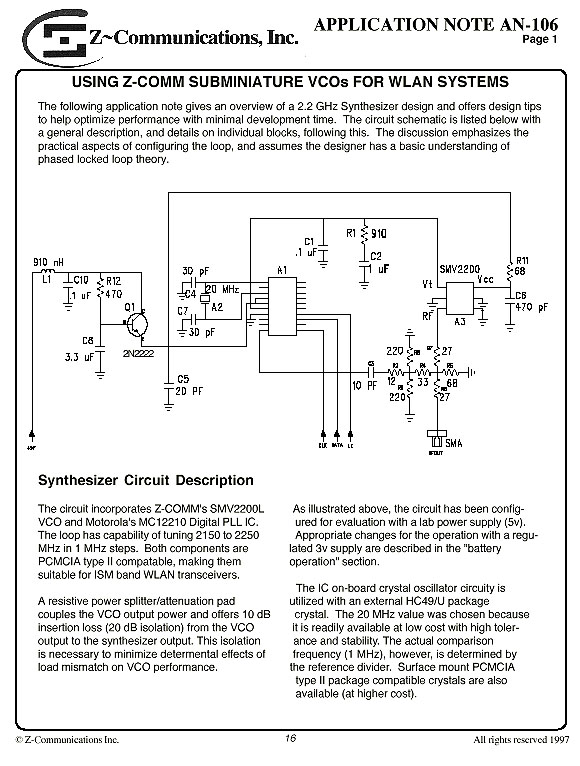

  • AN-106 ( Using the SMV2200L VCO with the Motorola MC12210 synthesizer for WLAN design)
  • AN-106 Page 2

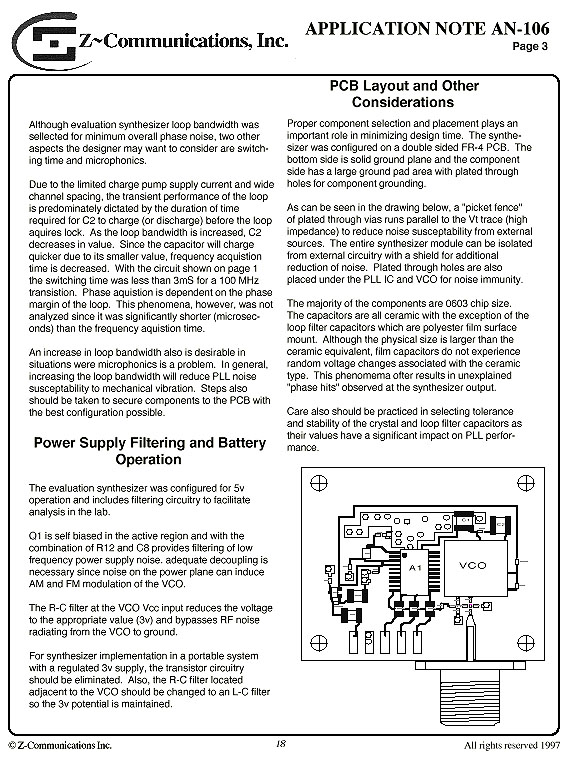

  • AN-106 Page 3
  • AN-107 Manual Soldering of VCOs
  • AN-108 Proper Output Loading of the SMV2500

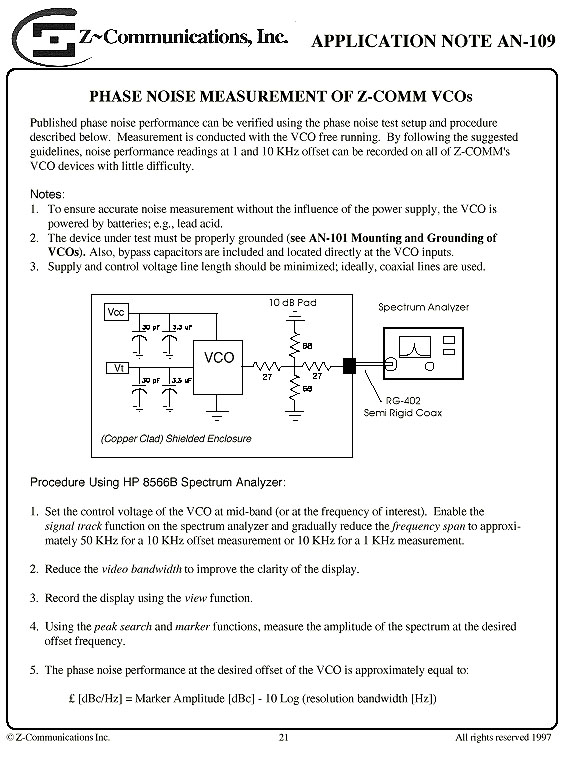

  • AN-109 Phase noise measurement of VCOs
  • AN-110 (Low cost extremely wide bandwidth design using multipliers & VCOs)

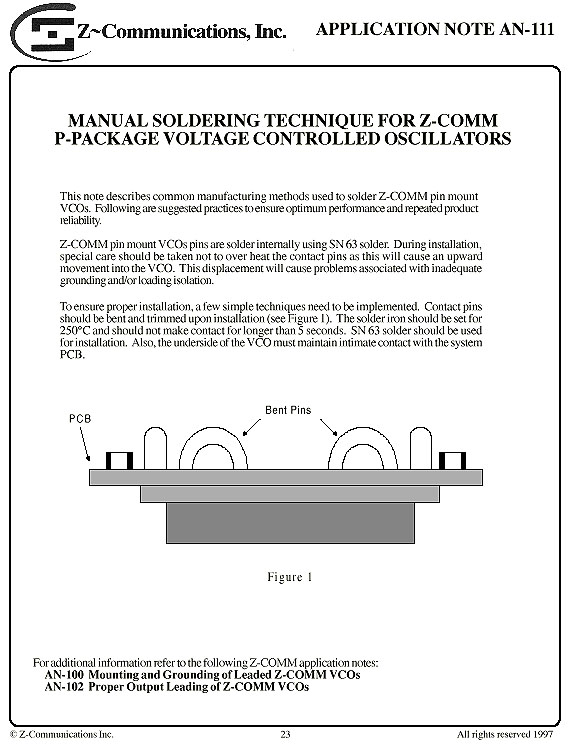

  • AN-111 (Manual soldering of P package VCOs)

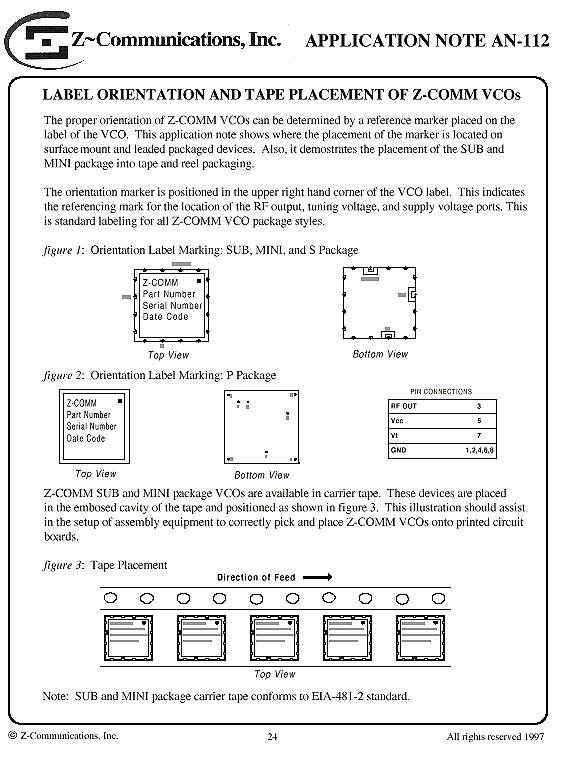

  • AN-112 (Label and Tape & reel information)

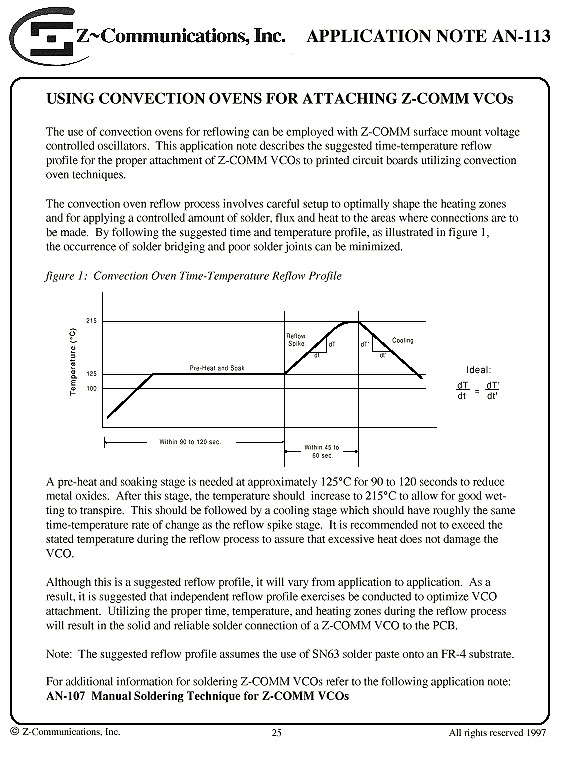

  • AN-113 (Using convection ovens for VCO attachment)
  • AN-114 (Pulling measurement of VCOs)
