RF Microwave And Wireless Communication Products

Welcome to our rf switches, microwave switches, mechanical rf switches, electro mechanical switches and

RF Microwave Switch selection guide if you do not see what you are looking for please send us an email request

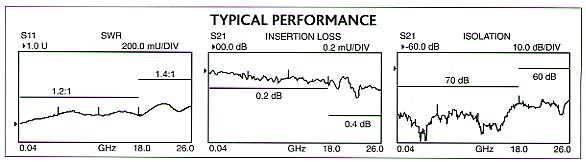

HD Stock # Operating Mode Insertion Loss DC-18 GHz (dB) Insertion Loss 18-26 GHz (dB) Isolation DC to 18 GHz (dB) Isolation 18 to 26.5 GHz (dB)
Voltage (Volts DC)
Current @ 20°C
Diodes
Indicator Contacts
TTL Logic

D14-413M50
Failsafe 0.2 0.4 70 60
20-32
90 mA @ 28 VDC
Yes
No
No

D14-413M50L
Failsafe 0.2 0.4 70 60
20-32
90 mA @ 28 VDC
Yes
No
Yes

D14-412M50
Failsafe 0.2 0.4 70 60
11-15
160 mA @12 VDC
Yes
No
No

D14-412M50L
Failsafe 0.2 0.4 70 60
11-15
160 mA @12 VDC
Yes
No
Yes

D14-413Y59
Pulse latch 0.2 0.4 70 60
20-32
90 mA @ 28 VDC
Yes
No
No

D14-412Y59
Pulse Latch 0.2 0.4 70 60
11-15
160 mA @12 VDC
Yes
No
No

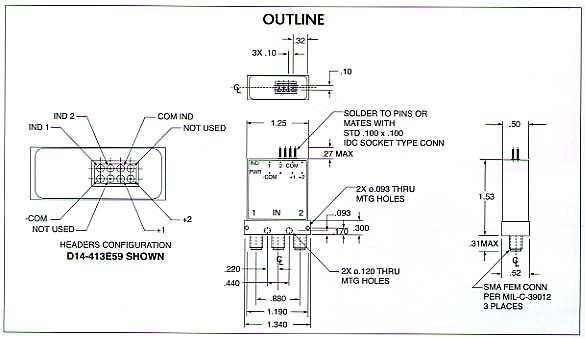

D14-413E59
Latching self cut off 0.2 0.4 70 60
20-32
90 mA @ 28 VDC
Yes
Yes
No

D14-413E50L
Latching TTL self cut off 0.2 0.4 70 60
20-32
90 mA @28 VDC
Yes
Yes
Yes

D14-412E59
Latching TTL self cut off
0.2
0.4
70
60
11-15
160 mA @12 VDC
Yes
Yes
No

D14-412E50L
Latching TTL self cut off
0.2
0.4
70
60
11-15
160 mA @12 VDC
Yes
Yes
Yes
