Welcome to our Pin Diode Switch, absorptive pin diode switch,reflective pin diode switchs,sp2t, spst, pin diode switch selection guide if you do not see what you are looking for please send us an email request

 Pin Diode Switch Selection Guide

HD14102 - 0.2 - 4.0 GHz Reflective SPST

 HD Part #

 General Specifications

 Power Supply Requirements
Switching Speed Video Filtering RF Input Pwr. Insertion Loss



 Dimensions (in)  LxWxH

 Price Each $

 Freq. Range: 0.2-4.0 GHz

Logic Connector : SMC Male

DC Connections: Solder Pins

RF Connectors: SMA female Connectors

Control Logic     : TTL Compatible Driver


 +5 /-12 V@ +/- 50mA
250 nSec Max. 5 mV Max.@ 100 MHz BW 1.0 W CW or Peak 100 mW,Off Port 1.8 dB Max.

60 dB Min.

1.5 : 1 Max.

 1.50  x 0.80 x 0.50

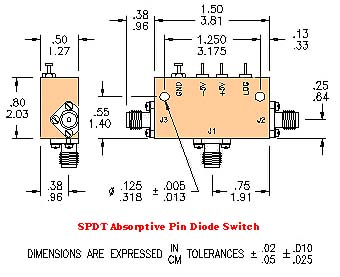

Absorptive and reflective are the same dimensions


Additional Pin Diode Switches Available please Request a Quote
