Welcome
to our WLAN directional and omni directional antenna selection
guide for original equipment manufacturers. Please view our 2.4
GHz antenna product selection guide. We offer 2.4 GHz Omni directional
antennas, 2400 mhz antennas,directional antennas, 2.4 GHz base
station antennas, 2.4 GHz video antennas, yagi antennas, and
many other antennas for the ISM, WLAN bands.
|
 |
|
2.4
GHz WLAN antennas/ Wireless Internet antennas/ Access Point antennas/Wireless
Bridge antennas/ 2.4 GHz Video antennas And antennas for Bluetooth
products |
All Of Our
Antennas Include Mounting Brackets
Larger OEM/Reseller
Discounts Available On Quantities above 100 Pieces
Call For
Pricing
|
Notebook and Desktop
Antennas & Antenna Kits for OEM Equipment
2.0 dBi to 6.0
dBi
Improve the performance
of your wireless network equipment. Most stick antennas offer
2 dBi gain or lower. We offer high gain antennas and antenna
Bundles
Professional Antennas
Series
|
|
HD Stock Number
To Download Data Sheet Click
on Part Number
|
Photo |
Antenna Type And
Description |
Click On The Buy Button
For Pricing
* contact sales for larger qty pricing
|

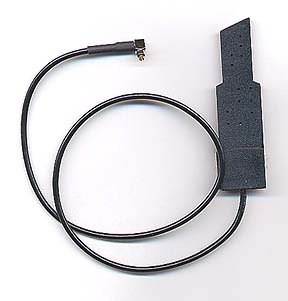

HD20662
|
Click photo to
enlarge
|
Lap Top multi Directional Antenna/
2300-2500 MHz/ 2.0 dBi / 10 inch cable, connector mates to Proxim,
Avaya, Orinoco laptop cards. |
|
|
HD20672
|
Works with
all 802.11B products with standard SMA connectors and will mate
to all SMA female pigtails
|
Desk Top Antenna/ 2300-2500 MHz/ 4.0
dBi / 24inch cable with a standard SMA male connector such as
on Trendware products.
*This
antenna requires one of our SMA Female pigtail adapters or cables
found at this link it will not connect directly to any wireless
network device other than Trendware products without a pigtail
Click
here
|
|
|
HD21054
|
High gain
means better performance
|
Desk Top Antenna/ 2300-2500 MHz/ 4.0
dBi / 24 inch cable with a Reverse Polarity TNC connector mates
with Cisco, SMC, Linksys, Access Points
End view of connector
click to enlarge
|
|
|
HD21055
|
|
Desk Top Antenna/ 2300-2500 MHz/ 4.0 dBi
/ 24inch cable with a reverse polarity SMA male connector. Mates
with RPSMA female connector such as on the Linksys WMP11, WET11,
Connectgear WA300 Access Point, D-link DWL-520, DWL-520+ DWL-900AP,
DWL-900AP+, Intel Pro/Wireless 2011B, Siemens 802.11 products,
and all Zoom products. |
|
|
HD21056
|
High gain
means better performance
|
Desk Top Antenna/ 2300-2500 MHz/ 4.0 dBi
/ 24 inch cable with Reverse Polarity MMCX connector
side view of connector
|
|
|
HD20685
|
 |
Multiband Ceiling
mount Antenna/ 1700-2700 MHz/ 3.7 dBi / VSWR 1.8:1 max./ Includes
ceiling grid mounting plate/ SMA Female connector
This antenna is also available with a cable to
mate to Linksys,D-Link, Cisco, Lucent Orinoco, Avaya, and others
see our bundle
page
|
|
|
HD21057
|
Just 4"
X 4"
High gain
means better performance
|
Lap Top/wall mount Directional Antenna/ 2300-2500
MHz/ 6 dBi / 12 inch cable SMA Male connector/Velcro patch to
attach antenna to surface
This
antenna mates to any of our SMA Female pigtail adapters or cables
|
|
|
HD20684
|
|
Lap Top/wall mount/desktop Directional
Antenna/ 2300-2500 MHz/ 6 dBi / 24 inch cable RPSMA Male connector
mates to Linksys WMP11 & WET11, and D-link DWL-520 and DWL-900AP,
Connectgear access points, Zoom 4007 card and zoom access points |
|
|
Access Point/ Wireless
ISP/ Antennas & Antenna Kits for OEM Equipment
5.0 dBi to 12.0
dBi
Improve the performance
of your wireless network equipment. Most stick antennas offer
2 dBi gain or lower. We offer high gain antennas and antenna
Bundles
Professional Antennas
Series
|
|
Wireless Bridge/
Wireless ISP Antennas & Antenna Bundles for OEM and 802.11B
Installers
14.0 dBi to 24.0
dBi
Professional Antennas
Series
|
|
OEM's don't
see what you are looking for ? Call us for help.
(888) 588-3800
|
|
|
WISP/ WLAN / ISM/
2.4 GHz Network Products |
